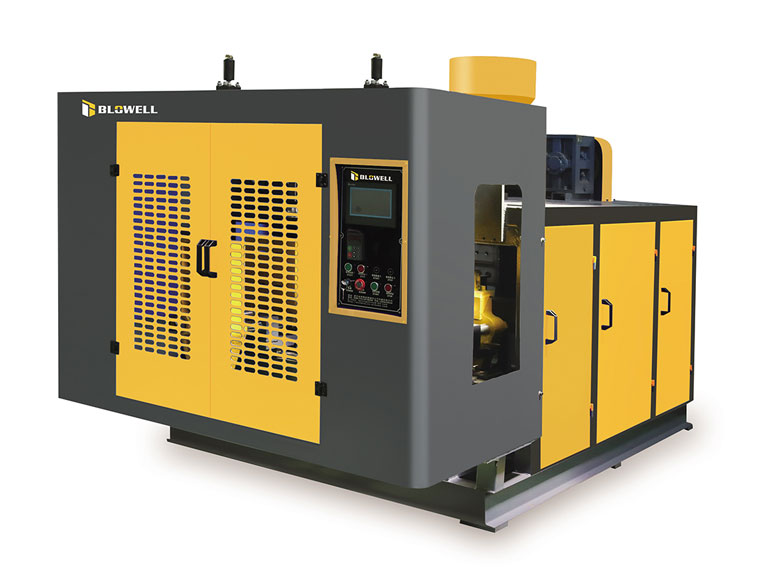

Extrusion blow molding machine(16-50L)
Specification:
| Items | Unit | BWB80 | BWB90 |
|---|---|---|---|
| Material | PE/PP… | PE/PP… | |
| Max. container capacity | L | 25 | 50 |
| Total weight | ton | 12.0 | 13.8 |
| Machine Dimension | m | 4.2×2.3×3.6 | 4.6×2.5×3.8 |
| Number of die heating | zone | 4 | 4 |
| Power of die heating | KW | 18 | 22 |
| Max die-pin diameter | mm | / | / |
| Accumulator capacity | L | 5 | 6.6 |
| platen opening stroke | mm | 350-800 | 400-1000 |
| platen size | mm | 740×600 | 880×780 |
| Main screw diameter | mm | 80 | 90 |
| Screw L/D ratio | L/D | 25:1 | 25:1 |
| Extruder heating power | KW | 20.2 | 21.6 |
| Extruder driving power | KW | 30-37 | 37-45 |
| Oil pump driving power | KW | 22 | 30 |
| Average energy consumption | KW | 0.6 | 0.8 |
