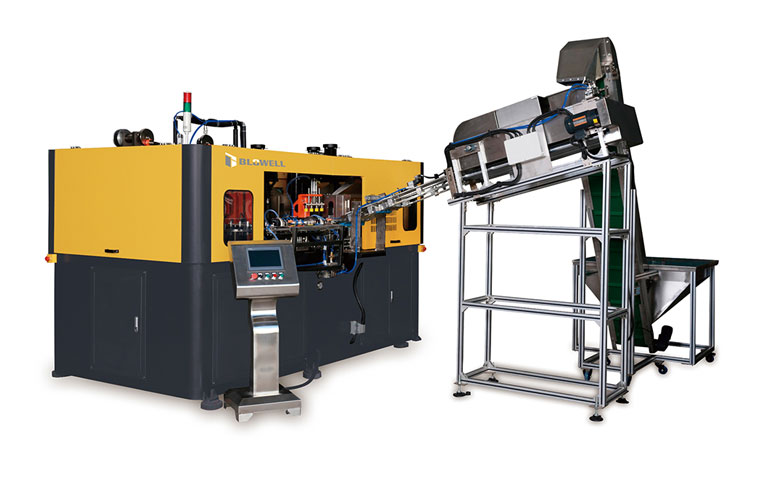

Hot filling automatic blow molding machine
Feature:
- Stainless steel mold.
- Molds is heated by the oil circulation and the temperature is controlled accurately.
- Two independent flow circuits for mold bottom and bottle body mold.
- Hot filling PET bottles are able to stand high temperatures ranging from 80°C to 90°C without deformation.
Specification:
| Items | Unit | BW-H4-1.5L | BW-H6-1.5L | BW-H4-0.6L | BW-H6-0.6L |
|---|---|---|---|---|---|
| Number of cavities | cavities | 4 | 6 | 4 | 6 |
| Max.volume | L | 1.5 | 1.5 | 0.6 | 0.6 |
| Neck diameter | mm | 18-38 | 18-38 | 18-38 | 18-38 |
| Max.diameter | mm | 103 | 103 | 67 | 67 |
| Max.height | mm | 330 | 330 | 240 | 240 |
| Theoretical output | bph | 2800~2400 | 4000~3500 | 3000~2600 | 4200~3800 |
| Rated power | KW | 72 | 98 | 44 | 72 |
| Power Consumption | KW | 32 | 46 | 20 | 30 |
| Main machine size | mm | 4200*2100*2400 | 4800*2150*2400 | 3300*1800*2200 | 4200*2050*2200 |
| Preform loader size | mm | 2000*1300*2300 | 2000*1300*2300 | 1900*1200*2300 | 1900*1200*2300 |
| Main machine weight | Kg | 5000 | 5800 | 4200 | 5000 |
